Pick-up mounted · Isuzu D-Max 4×4
12.0 m pick-up MEWP

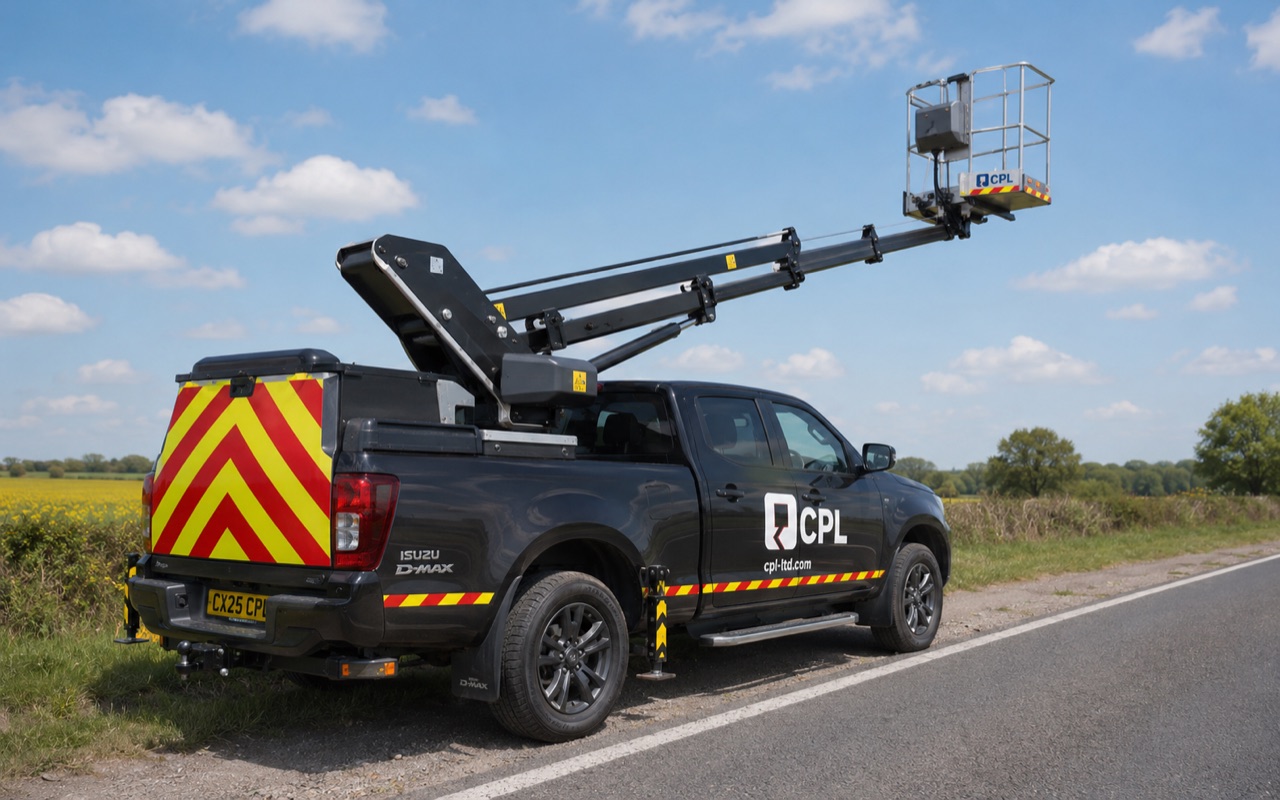

A 12.0 m MEWP on the Isuzu D-Max 4×4 double-cab. Four-wheel drive and a low tare weight make this the right choice for green-lane, off-road, and rural sites where a van-based unit would struggle.
Specifications
Every dimension on the unit.
All figures are measured to IPAF standards. Kerb weights and GVW include a full tank of fuel but no operator or equipment.
| Working height | 12.0 m |
| Maximum outreach | 6.5 m |
| Basket capacity | 200 kg |
| Base vehicle | Isuzu D-Max 4×4 |
| GVW | 3,500 kg |
| Engine | 1.9 DDi · 164 hp · Euro 6 |
| Drive | 4WD |
| Slewing | 360° continuous |
| Outriggers | 4 × independent · PAS 43 |
Working envelope
12 m up. 6.5 m out.
The envelope shows maximum simultaneous height and outreach. In practice, the basket can occupy any point within the shaded area.
Standard fit
What's included before the bespoke options.
Every CPL conversion leaves the yard with these items as standard. Extras are specified at build sheet sign-off.
- PAS 43 outrigger package4 × independent outriggers, interlock system
- Three load cellsContinuous basket overload monitoring
- Hi-vis chevron rear panelClass 2 reflective chevrons · DOT compliant
- Beacon + work lightsLED amber beacon + 2 × LED work lights
- Twelve-month CPL CareAnnual service + 24 hr breakdown cover
Downloads
Spec sheet, manual, finance pack.
All documents are current at the time of listing. Contact sales for the latest build sheet if a document is more than 90 days old.
Build sheet
Request a build sheet — we'll come back inside the day.
No email required. Tell us the chassis you prefer and how many units you're looking at, and our team will call you with indicative pricing and the next available slot in the Kettering workshop.
- Phone-first. No email funnels. No drip sequences.
- Same-day response. Quotes back inside one working day.
- Honest lead times. The current production queue is 6 weeks.
Finance
Pre-approval can run alongside the build.
CPL works with a panel of asset finance providers. Indicative approval typically takes 24–48 hours — you can run it in parallel with the build queue.
Run the calculator →£68,900 · 5-year term · 10% deposit
From£1,056 / month
Indicative, ex VAT. Subject to credit approval and final build sheet. Final pricing confirmed at sign-off.
